How to Install an Exterior Light Fixture on Wood Siding

Are you tired of fumbling around in the dark when you come home at night? Don’t worry, you’re not alone! Many homeowners face this issue, and the solution is simple: install an exterior light fixture on your wood siding.

How to install an exterior light fixture on wood siding not only enhances the aesthetic appeal of your home but also provides added security and functionality. Whether you’re replacing an old fixture or installing a new one, the process can be managed with the right tools and guidance. By following a step-by-step approach, you can ensure a secure and professional-looking installation that withstands outdoor conditions.

This guide on diy light fixture will walk you through the necessary preparations, tools, and steps to successfully mount an exterior light fixture on wood siding.

What Are the Benefits of Mounting an Exterior Light Fixture on Wood Siding?

Mounting an exterior light fixture on wood siding offers several benefits, including:

• Enhanced Curb Appeal: The right light fixtures can significantly improve the overall appearance of your home’s exterior, making it more welcoming and visually appealing.
• Enhanced Outdoor Living Space: Exterior lighting enables you to extend your living space outdoors. By illuminating your patio, deck, or backyard, you can enjoy these areas well into the night.
• Better Security: A well-lit exterior is a great deterrent for potential intruders. Having properly installed and positioned light fixtures can make your home less vulnerable to break-ins.
• Increased Functionality: Exterior light fixtures not only provide illumination but also serve a functional purpose. For example, motion-activated lights can make it easier to navigate your property at night or while carrying groceries.

What Will You Need?

When it comes to installing exterior light fixtures, there are a few essential tools and materials you will need:

• Light fixtures
• Bulbs
• Mounting hardware (such as screws)
• Electrical wire
• Wire connectors
• Wire stripper/cutter tool
• Screwdriver or drill
• Ladder or scaffolding (if necessary)

It’s important to have all the necessary equipment before beginning your installation project. This will ensure a smooth and efficient process.

10 Easy Steps on How to Install an Exterior Light Fixture on Wood Siding

Step 1. Turn Off the Power

Locate the circuit breaker that supplies power to the area where you will be working, and switch it off. Double-check that the power is off by using a non-contact voltage tester on the existing wiring. This step is crucial for your safety and prevents the risk of electrical shock while working on the installation.

Step 2. Remove the Old Fixture

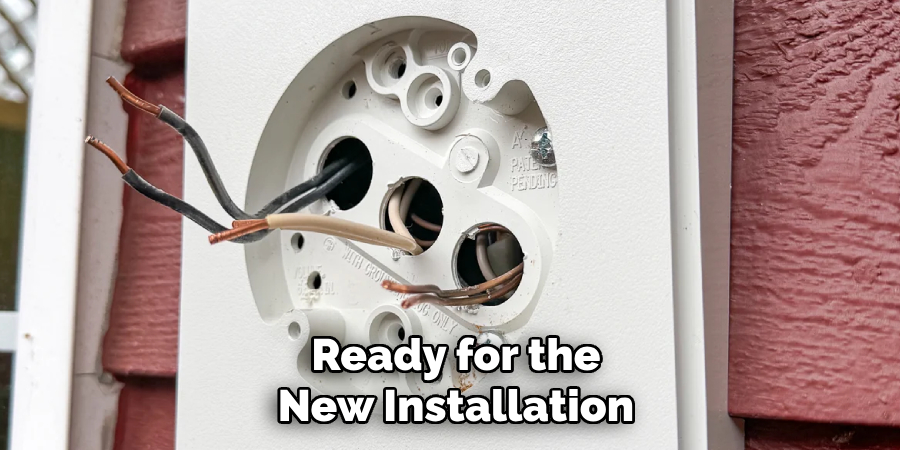

Begin by unscrewing the bolts or screws that hold the old fixture in place. Carefully detach the fixture from the wall, ensuring you support it as you work to avoid putting unnecessary stress on the wiring. Once the fixture is free, disconnect the wiring by loosening the wire nuts or connectors. Take note of how the wires are connected, as this will help when installing the new fixture. Gently pull the wires out of the fixture’s mounting plate or housing. If there is any damage or corrosion on the wires, it’s essential to address it now before proceeding. Once the old fixture is fully removed, inspect the mounting area to ensure it is clean and ready for the new installation.

Step 3. Inspect the Wiring

Ensuring the wiring is in good condition is a critical step in the installation process. Begin by examining the exposed wires for any signs of wear, fraying, or discoloration, as these may indicate damage or corrosion. If any cables appear damaged, they should be replaced or repaired before moving forward to ensure a safe and effective connection. Additionally, confirm that the wires are of adequate length to reach the new fixture comfortably, as overstretching wires can create tension and lead to potential hazards over time. Use a voltage tester to double-check that the wires are not live before handling them further, even if the power is turned off, as a precaution.

Step 4. Attach the Mounting Plate

Begin by aligning the mounting plate with the electrical box, ensuring that the screw holes are adequately matched. Secure the plate to the electrical box with the provided screws, tightening them firmly but not excessively to avoid stripping. If the fixture includes a grounding wire, connect it to the grounding screw on the mounting plate as per the manufacturer’s instructions. Ensure the plate is level before proceeding, as this will help maintain the fixture’s alignment and stability. A properly attached mounting plate serves as the foundation for the fixture, providing support and ensuring your installation remains secure over time.

Step 5. Connect the Wires

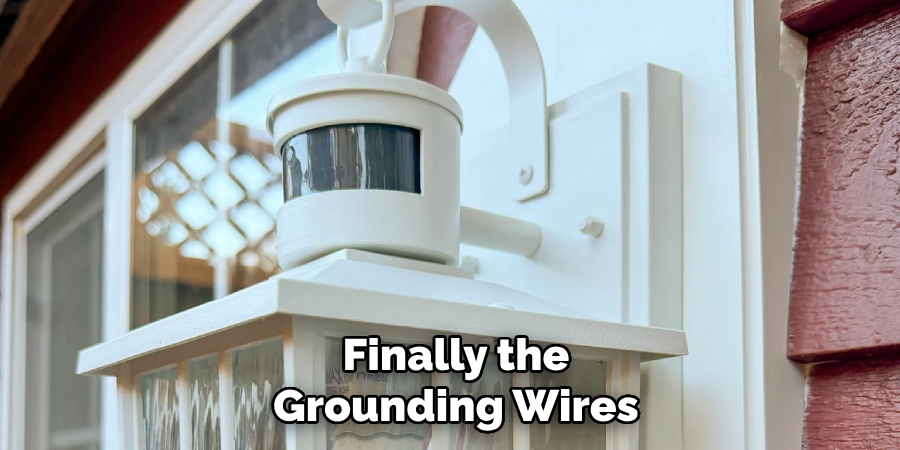

Begin by identifying the wires from your fixture and those from the outlet box—commonly, you will find a black (hot) wire, a white (neutral) wire, and a green or copper (grounding) wire. Match the wires from the fixture to the corresponding wires in the outlet box. Using wire connectors, twist together the black wires, the white wires, and finally the grounding wires. Ensure the connections are tight and secure to prevent any loose wires. Carefully tuck the connected wires back into the outlet box, ensuring there is no pinching or strain. Take your time with this step, as proper wiring is essential for safety and functionality.

Step 6. Secure the Fixture

After ensuring all wires are correctly connected and tucked into the outlet box, align the fixture with the mounting hardware. Attach the fixture to the ceiling or wall bracket using the provided screws or bolts. Ensure the fixture is level and securely fastened, taking care not to overtighten, as this could damage the hardware. Once the fixture is stable, double-check that there are no loose parts and that everything is firmly in place. A secure fixture not only ensures safety but also contributes to the overall aesthetic of the installation.

Step 7. Install the Bulb

Carefully select the appropriate bulb type specified in the fixture’s manual or packaging. Align the bulb’s base with the socket and gently insert it, turning it clockwise until it is snugly in place. Avoid overtightening, as this may damage the bulb or the fixture. If using a delicate bulb, such as a halogen or LED, handle it with care and use a cloth or glove to prevent oils from your skin from transferring onto the bulb’s surface, which can affect longevity. Once installed, ensure the bulb is secure but not forced.

Step 8. Seal the Edges

Using a weatherproof sealant or caulking material, apply a thin, even bead of sealant carefully around the edges of the fixture. This will help protect it from moisture, dirt, and other environmental elements, ensuring a longer lifespan and consistent performance. Use a caulking gun or applicator for precision, and smooth out the sealant with a gloved finger or a caulking tool to create a clean, professional finish. Allow the sealant to cure according to the manufacturer’s instructions before testing the fixture.

Step 9. Turn On the Power

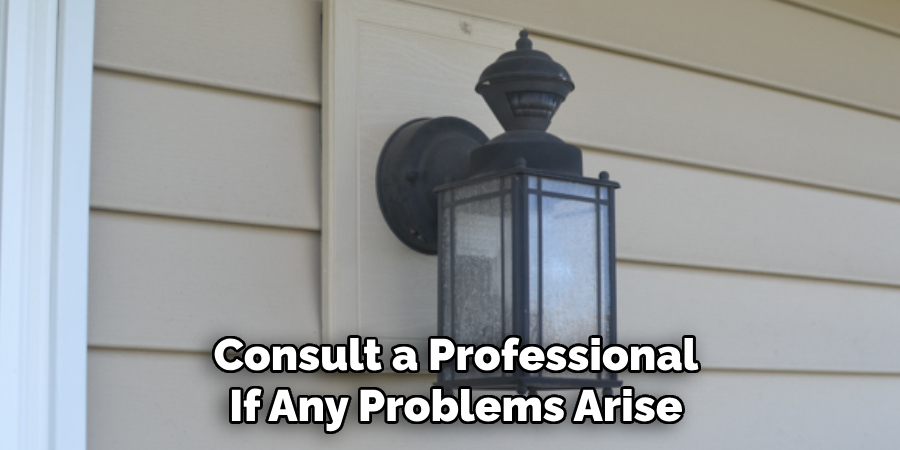

Once the sealant has fully cured, it is time to restore power to the fixture. Go to the circuit breaker or power source and switch the appropriate breaker back on. Then, test the fixture to ensure it is functioning correctly. Confirm that all components are operating as expected, and verify there are no issues such as flickering lights or loose connections. If everything is in working order, your installation is complete. Always practice caution when handling electrical systems and consult a professional if any problems arise.

Step 10. Final Check

Before concluding the installation process, take a moment to scrutinize the entire setup. Ensure that all wires are correctly connected, secured, and insulated. Double-check that the fixture is securely mounted and properly aligned. Test the fixture’s functionality multiple times to ensure consistent performance. If any adjustments are needed, address them immediately to avoid potential issues. Once you are satisfied with the results, clean up the work area and dispose of any leftover materials safely. Congratulations, your project is complete!

By following these steps, you can successfully install any light fixture in your home. However, it is essential to note that electrical work can be hazardous and should only be attempted by individuals with proper knowledge and training.

5 Things You Should Avoid

1. Skipping the Weatherproofing Step

  Always ensure the fixture is properly sealed and weatherproofed. Neglecting this step can lead to water infiltration, which may damage the siding or create electrical hazards.

2. Using Incorrect Mounting Hardware

  Avoid using screws or anchors that are not specifically designed for use with wood siding. Improper hardware can result in an unstable installation or damage to the siding.

3. Failing to Turn Off the Power

  Never attempt to work on electrical wiring without switching off the power at the circuit breaker. This can prevent serious injuries or even life-threatening accidents.

4. Ignoring the Fixture’s Weight Requirements

  Do not use a light fixture that exceeds the weight capacity of the supporting junction box or siding. This can lead to structural failure and potential safety hazards.

5. Neglecting to Check Local Electrical Codes

  Avoid ignoring local building and electrical codes. Failure to adhere to regulations could result in fines, unsafe installation, or the need for costly corrections.

Conclusion

How to install an exterior light fixture on wood siding requires careful planning and adherence to safety guidelines.

Begin by selecting a fixture that suits the weight capacity of the junction box and complements the style of your home. Ensure the mounting surface is sturdy and adequately prepared to support the fixture. Always turn off the power to the area before starting the installation process to avoid electrical hazards. Follow the manufacturer’s instructions for wiring, and consult local electrical codes to ensure compliance.

Finally, securely attach the fixture, test the installation, and seal any gaps with weatherproof caulking to protect against the elements. Proper preparation and attention to detail will ensure a safe and durable installation.
